Biomass Series
Bio950

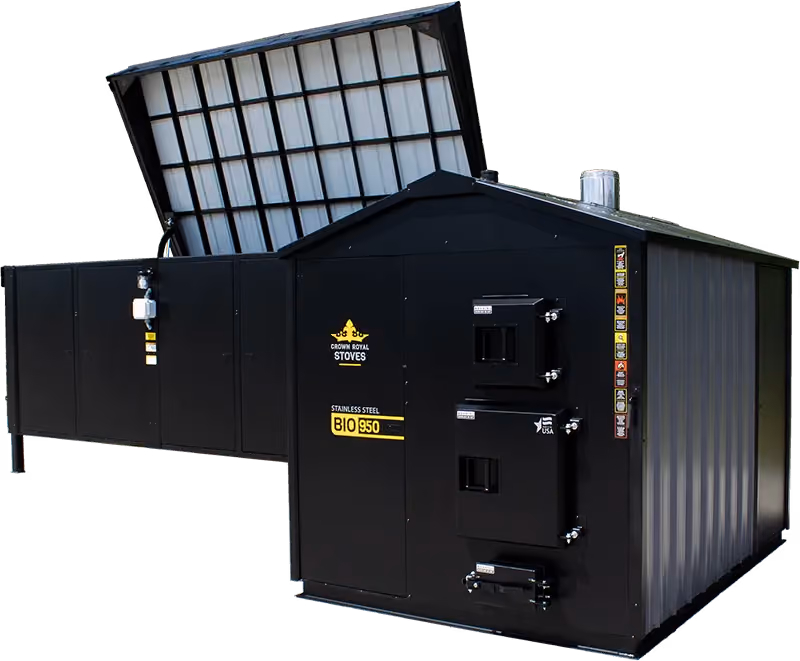

The Crown Royal Biomass Bio950 is a commercial-grade automated boiler built for large heating loads, pairing with an AF-15 automated fuel bin. A triple-pass heat exchanger and multi-fuel capability — wood chips, pellets, and other compatible biomass fuels — deliver dependable heat for commercial, agricultural, and multi-building applications. Automated fuel delivery keeps hands-on operation to a minimum.
Recommended For
Commercial and agricultural properties from 20,000–32,000 sq ft
Learn more about the Biomass Series →20,000–32,000
SQ FT COVERAGE
950,000
APPROX. BTU
400 GAL
WATER CAPACITY
4,400 LBS
EST. WEIGHT
R49/R30
INSULATION
Contact for Pricing
20-Year Warranty
Pickup or Local Delivery Available
American Made in International Falls, MN
Bio950 Details
Full Specifications
Performance & Certification
Model
Bio950
Series
Biomass (Multi-Fuel)
Approx. Coverage
20,000–32,000 sq ft
Approx. BTU
950,000
Water Capacity
400 gal
Insulation (Roof/Walls)
R49/R30
409 Stainless Steel
Yes
Lower Primary Combustion
150 CFM
Over Fire Combustion Blower
150 CFM
Forced Draft Fan
300 CFM
Dimensions & Installation
Width
83"
Length
111"
Height
99"
Slab Dimensions
12' x 30'
Chimney Size
8"
Door Size
22" x 22"
Supply Size
1¼"
Return Size
2×2″, 1×1¼″, 1×¾″
Estimated Weight
4,400 lbs
Fuel Bin
AF-15 Automated Fuel Bin
