In Stock
Replacement Part

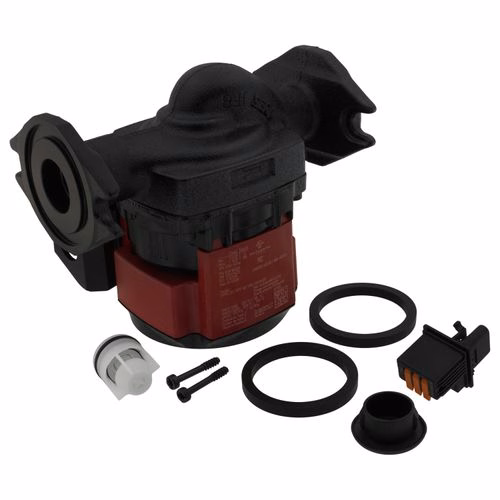

Grundfos UPMS 20-58 Cast Iron ECM Circulator Pump

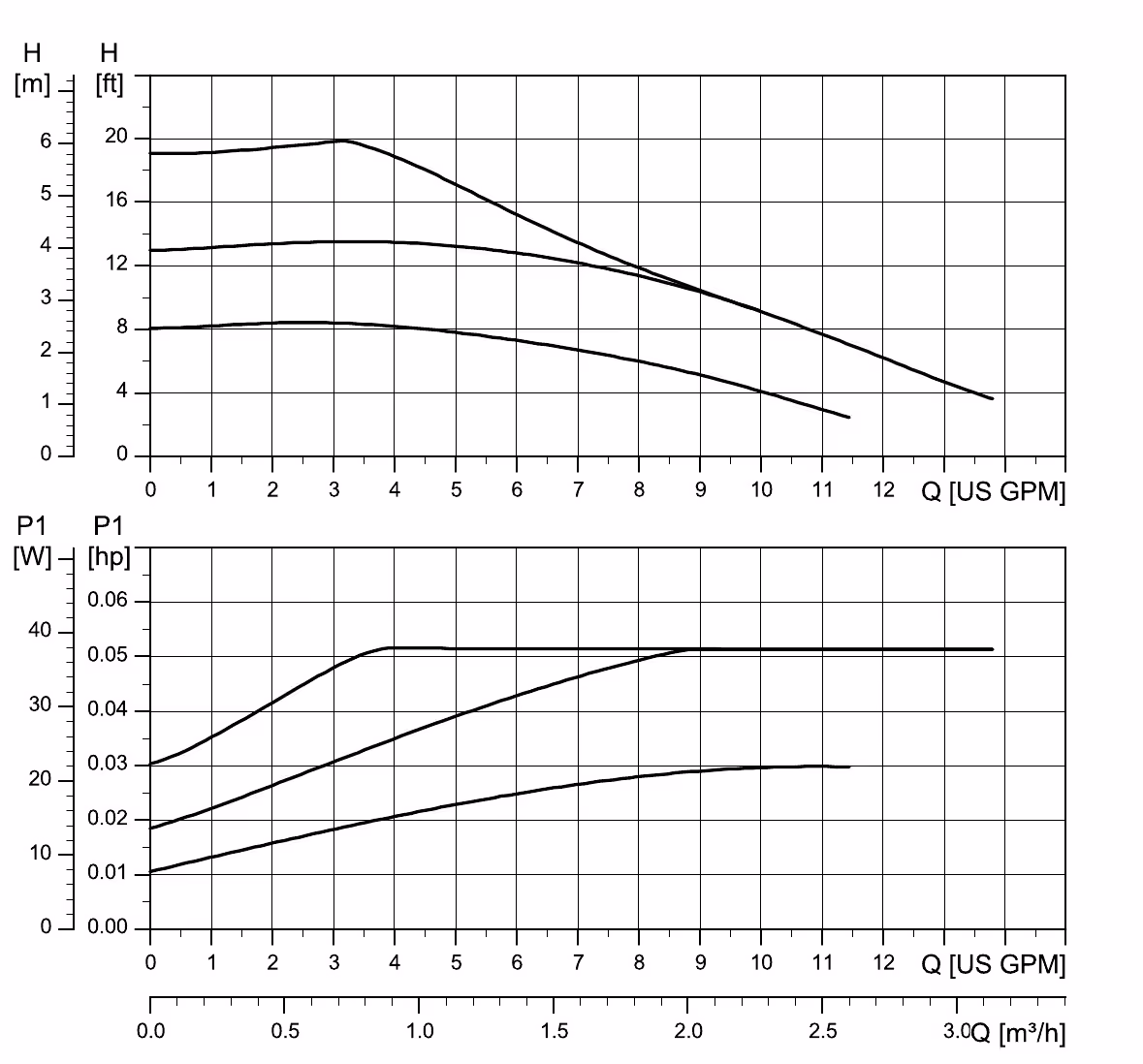

Rated for 0–13.6 GPM of flow and 0–19 ft of head, in a Cast Iron body that draws just 38 W.
0–19 ft
Head
0–13.6 GPM
Flow Rate
0.71 A
Amp Draw
38 W
max Power
Cast Iron
Body
$ 209.25 USD
In Stock
Recommended For
Small to medium heat loads with small loop lengths
Not sure this is your pump? Try the free Pump Finder →30-day returns on unused parts in original packaging
Free nationwide shipping — most in-stock orders leave same or next business day
Family-run business focusing on customer service
Product Details
About This Product
The Grundfos UPMS 20-58 Cast Iron ECM Circulator Pump is recommended for Small to medium heat loads with small loop lengths. It features a Cast Iron body and draws 0.71 A (38 W).
Full Specifications
Model
Grundfos UPMS 20-58 Cast Iron ECM Circulator Pump
Flow Rate
0–13.6 GPM
Maximum Head
0–19 ft
Amp Draw
0.71 A
Power Draw
38 W
Low Power
8.4 W
Medium Power
High Power
38 W
Body Material
Cast Iron
Recommended For
Small to medium heat loads with small loop lengths
Grundfos UPMS 20-58 Cast Iron ECM Circulator Pump
Small to medium heat loads with small loop lengths
$ 209.25 USD
View Details
Taco 0026-F2 High Efficiency Circulator Pump
Medium to large heat loads with medium loop lengths
$ 619.25 USD
View Details

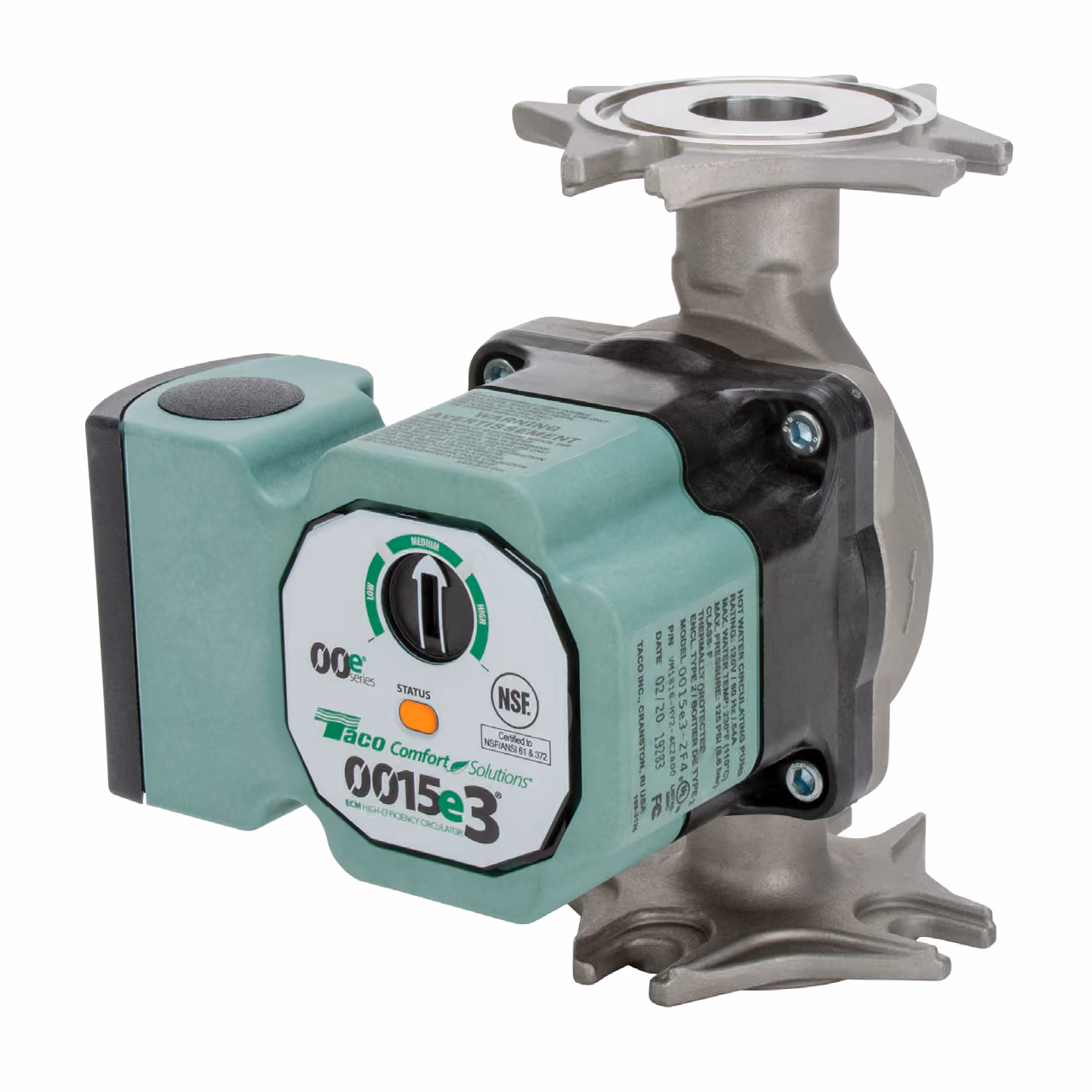

Taco 0015e3-SF4 Stainless Steel Three Speed High Efficiency Circulator Pump
