Grundfos UPMS 20-78 Cast Iron ECM Circulator Pump

Replacement Part

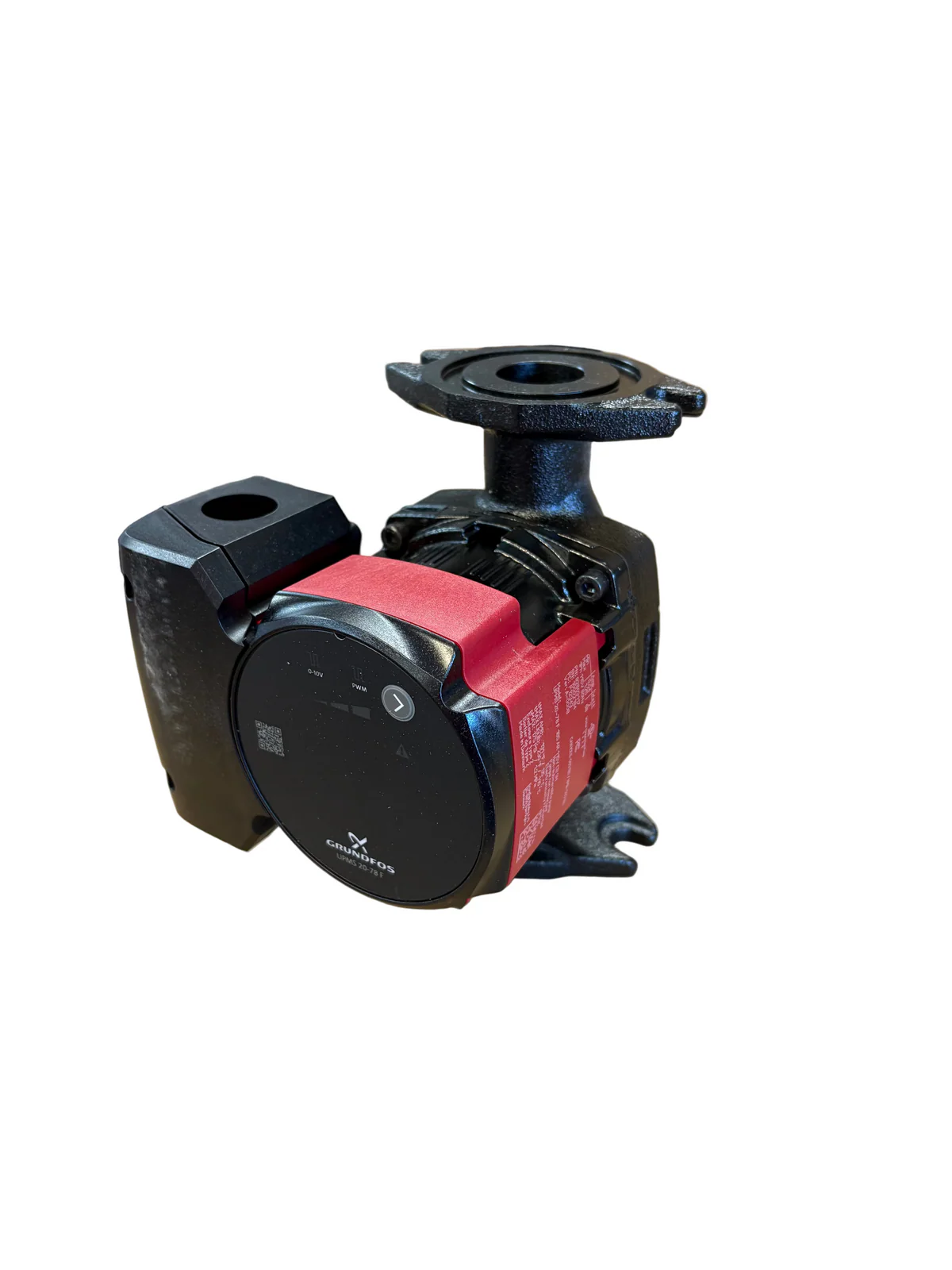

Grundfos UPMS 20-78 Cast Iron ECM Circulator Pump

Rated for 0–16 GPM of flow and 0–25.6 ft of head, in a Cast Iron body that draws just 68 W.

0–25.6 ft

Head

0–16 GPM

Flow Rate

1.25 A @ 115V

Amp Draw

68 W

max Power

Cast Iron

Body

$ 225.25 USD

In Stock

Buy now

Recommended For

Medium to large heat loads with small to medium loop lengths

Not sure if you have the right pump? Try the free Pump Finder →

30-day returns on unused parts in original packaging

Free nationwide shipping — most in-stock orders leave same or next business day

Family-run business focusing on customer service

Product Details

About This Product

The Grundfos UPMS 20-78 is an ECM cast iron circulator pump that delivers up to 16 GPM and 25.6 ft of head. Power draw ranges from 15 W to 68 W across its speed settings, which keeps running costs low. It is a fit for medium to large heat loads with small to medium loops.

Full Specifications

Model

Grundfos UPMS 20-78 Cast Iron ECM Circulator Pump

Flow Rate

0–16 GPM

Maximum Head

0–25.6 ft

Amp Draw

1.25 A @ 115V

Power Draw

68 W

Low Power

15 W

Medium Power

39 W

High Power

68 W

Body Material

Cast Iron

Recommended For

Medium to large heat loads with small to medium loop lengths
